Altra nuova uscita di casa wismec molto simile alla predator IMHO pù bella dopo la FJ200(batt. integrata) inseriscono questa con 2 batterie da 18650
come al solito wismec fa la sua porca figura.
devo essere sincero devo dire anche se questi schermi sono fighissimi e i firmware e in style cellulare bello colorato strafigo pure lui, ma nelle box preferisco il classico schermo oled meno confusionario semplice e veloce (IMHO) mi ricorda tanto quando iniziarono a uscire i cloni dell'iphone il CECT che avevano l'ios scritto in java hahahahah
però è un mio parere è bello reattivo e semplice alla fine è solo una questione di gusti tutto li
The Wismec SINUOUS RAVAGE230 Kit consists of SINUOUS RAVAGE230 Mod and GNOME Evo Tank.
Vedi l'allegato RAVAGE230_03.png
Parameter
��come al solito wismec fa la sua porca figura.
devo essere sincero devo dire anche se questi schermi sono fighissimi e i firmware e in style cellulare bello colorato strafigo pure lui, ma nelle box preferisco il classico schermo oled meno confusionario semplice e veloce (IMHO) mi ricorda tanto quando iniziarono a uscire i cloni dell'iphone il CECT che avevano l'ios scritto in java hahahahah
però è un mio parere è bello reattivo e semplice alla fine è solo una questione di gusti tutto li
The Wismec SINUOUS RAVAGE230 Kit consists of SINUOUS RAVAGE230 Mod and GNOME Evo Tank.
Vedi l'allegato RAVAGE230_03.png
Parameter
|
| |||||
|
|
|
|
| ||
| Size: 43.6*30.0*83.4mm | Weight: 147.3g | Output Wattage: 1-200W | 1.45inch | ||
|
|
|
|
|
|
|
|
Exquisite, Stylish yet PowerfulHaving a large 1.45inch color display with brand-new interface, the SINUOUS RAVAGE230 is convenient in use and fashionable in look.

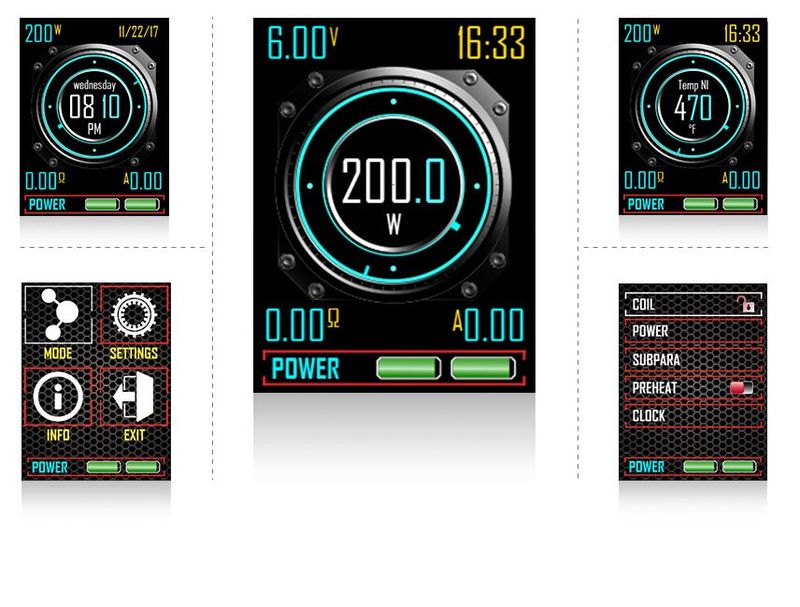

Quick Menu, Customize Your VapingYou are free to choose the display and set the parameters. Compact mod records your vaping tips.
The SINUOUS RAVAGE230 adopts a user-friendly interface, which is easy and convenient to operate. erything is under control.

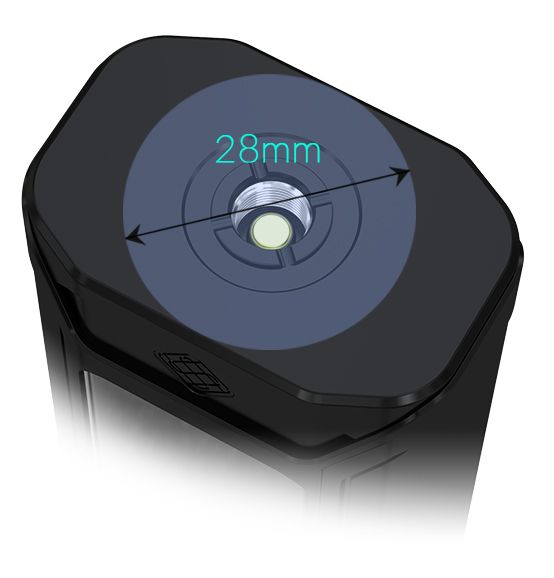

Centered 510 Spring Loaded Connector
The innovative design of centered 510 connector is a big plus to the SINUOUS RAVAGE230. It can hold tanks up to 28mm diameter.

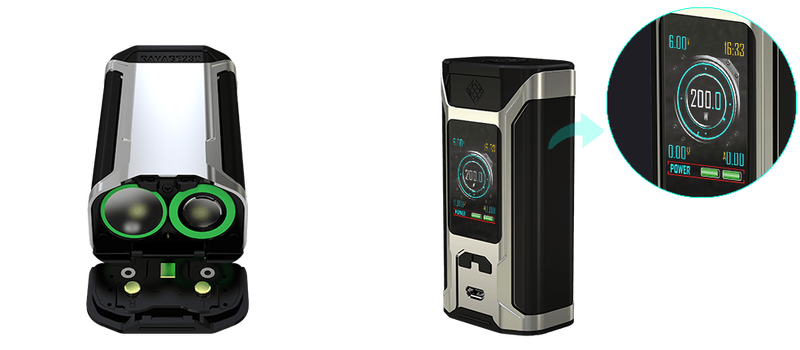

Dual 18650 Mod with 200W Max OutputPowered by dual replaceable 18650 cells, the SINUOUS RAVAGE230 is capable of outputting 200 watts, providing you with large vapor.
Updated WM01 Coil for Huge Vapor and Pure Flavor
With the updated WM01 single 0.4ohm head, the SINUOUS RAVAGE230 is intuitively designed with the purpose for an ultimate vaping experience.

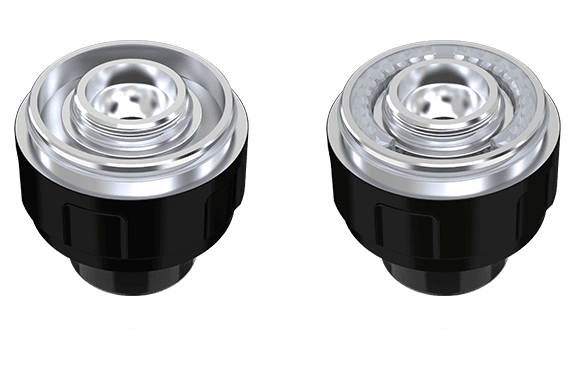

2ml/4ml Versions Available for Your Preference
To be compliant with the TPD regulations, 2ml and 4ml versions of GNOME Evo atomizer are available for your preference.
2A Max Charging Current for Quick Charge
With 2A maximum charging current, the batteries can be fully charged more quickly.
Battery Balance Charge System
The balance charge technology brings the cells to an equal state of charge, making it much safer while charging.
The balance charge technology brings the cells to an equal state of charge, making it much safer while charging.

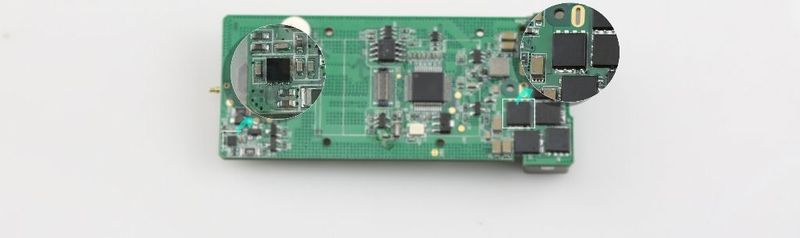

Dual Circuit Protection & Reverse Polarity Protection
And the dual circuit protection systems make the SINUOUS RAVAGE230 much safe and reliable.

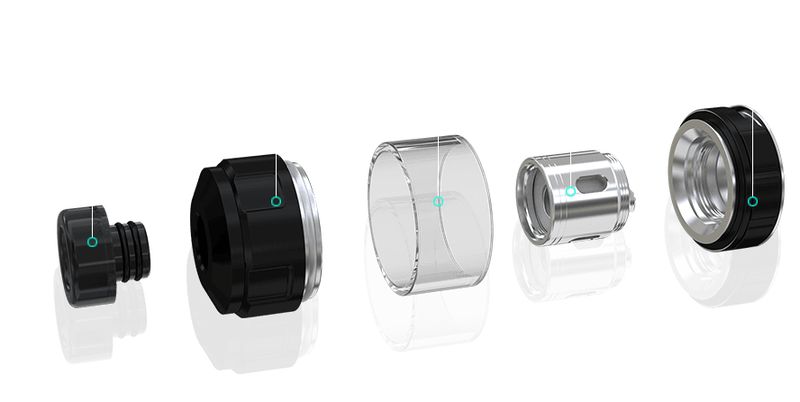

Detachable Structure for Easy CleaningAll the parts of GNOME Evo atomizer can be detached and reassembled, bringing much convenience in cleaning it.

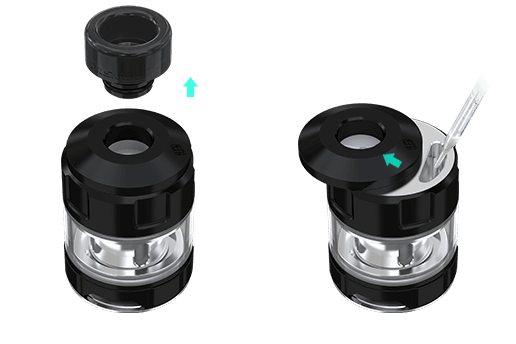

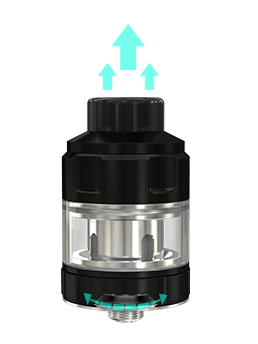

Retractable Top Filling Solution with Child Lock System
Only unplug the mouthpiece, can you slide the top cap and finish the refilling. The design of childproof lock system avoids any unintentional push effectively.
Only unplug the mouthpiece, can you slide the top cap and finish the refilling. The design of childproof lock system avoids any unintentional push effectively.
Convenient Bottom Airflow Control
By rotating the airflow control ring only, you can adjust the airflow to your preference.
By rotating the airflow control ring only, you can adjust the airflow to your preference.
Upgradeable Firmware with Real-time Clock
Coming with the upgradeable firmware, real time clock system is newly applied to SINUOUS RAVAGE230.
You can check the time whenever and wherever possible

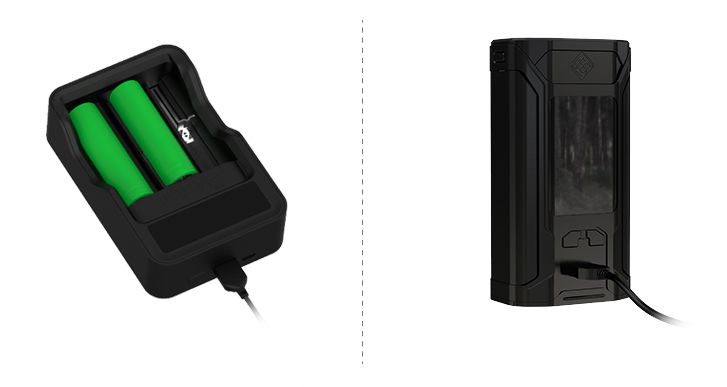

Charging
It is better to take out the cells and charge them through external charger.You can also charge the device by connecting it with a computer or a wall adapter via USB cable.

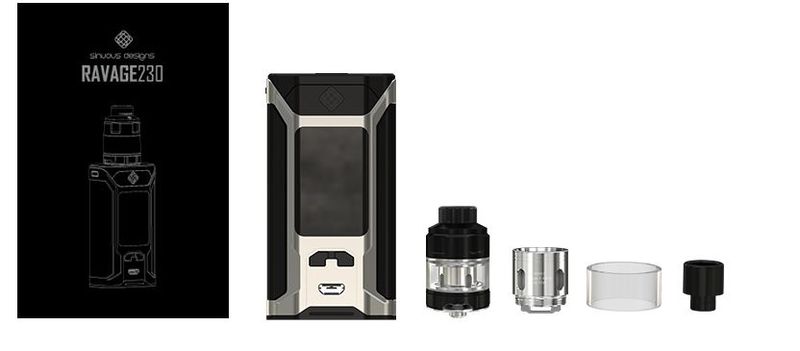

Standard Configuration
- 1 * SINUOUS RAVAGE230 (no cells)
- 1 * QC USB Cable
- Spare Parts
- 1 * GNOME Evo
- 2 * User Manual
- 2 * WM01 Single 0.4ohm Head
- 2 * Warning Card
The authentic Wismec SINUOUS RAVAGE230 TC VW Box Mod features sleek appearance with ergonomic design, 1.45inch large color display and updated centered 510 connector. Powered by dual 18650 batteries (not included), the mod is capable of delivering output power from 1W to 200W. It also supports temperature control and multiple working modes. With side fire switch, it is very easy to use.
Tank:

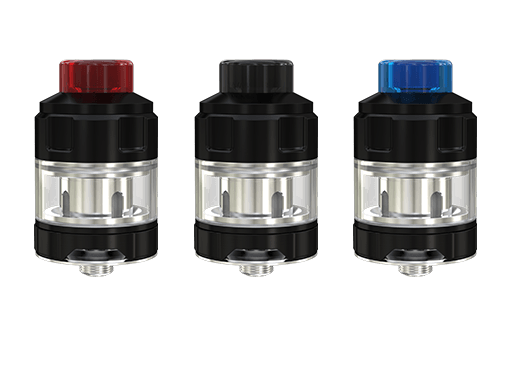

The GNOME Evo tank is a 25mm tank with 2ml / 4ml capacity. It features convenient top fill design and adjustable bottom airflow and utilizes WM01 single 0.4ohm head, which works at a range of 40 to 70W, and best at 50 to 60W.
Exquisite, stylish yet powerful, the SINUOUS RAVAGE230 kit can offer you more than you can imagine.
- F
Features:
| Weight: | 147.3g |
| Size: | 43.6*30.0*83.4mm |
| Output Wattage: | 1-200W |
| Maximum Charging Current: | 2A |
| Output Voltage Range: | 0.5-9V |
| Cell Type: | high-rate 18650 cell (discharging current should be above 25A) |
| Temperature Range: | 100-315°C/200-600°F (TC modes) |
| Maximum Output Curren: | 50A |
| Thread Type: | VW/TC-Ni/TC-Ti/TC-SS/TCR mode |
| Color: | Black and Red, Full Black, Black and Blue, Black and Silver |
1. Powered by dual 18650 batteries with 200W of output, the Sinuous Ravage provides you a perfect experience.
2. Featuring a large 1.45-inch full color display.
3. With the real time clock display, you can check the time wherever and whenever.
4. Featuring a wide 510 threaded connector with spring-loaded center pin, it can hold tanks up to 28mm diameter.
5. Having a user friendly interface, it is convenient and easy to use.
6. Featuring the main menu, you are free to choose the display and set the parameters.
7. Featuring 2A max charging current, battery balance charge system, dual circuit protection and reverse polarity protection.
The Functions of USB of SINUOUS RAVAGE230
1. Charging:
The battery can be charged through the side USB port via wall adapter or computer or charged with an external battery charger.
2. Firmware upgrading:
The firmware can be upgraded by connecting the device with a computer through the USB port via a micro USB cable.
How To Charge
Simply charge RAVAGE230 Mod by connecting it with a computer , a power bank, a wall adapter or other electronic devices (with a USB port that is capable of providing a charge) via USB cable, also you can purchase an inexpensive USB car adapter, thereby affording you the ability to charge the RAVAGE230 in the car. This is particularly useful while on long drives and road trips.
Package Comes With
1x SINUOUS RAVAGE230 (NO CELLS)
1x QC USB cable
1x User Manual
1x Warning card
